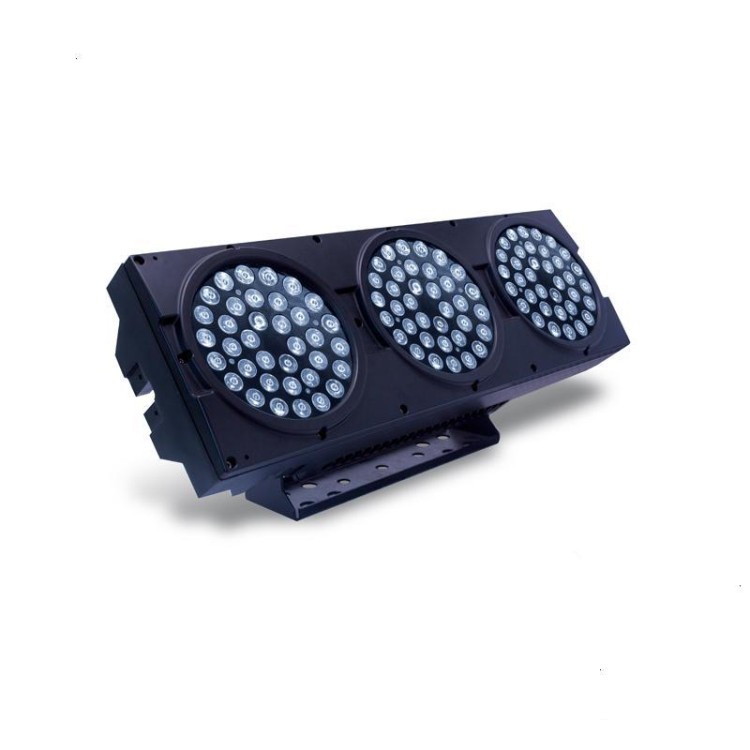

    • Product Name: LED Walls Washer Series 570X190
    • Number: GZD-TGD-570X190

    QQ chat

    LED wall washer series is with aluminum alloy fixture, high quality silicon rubber sealing ring, good waterproof performance. High-intensity tempered cover glass and high transmittance lens, combined with the optical refraction principle design, can reach 90% transmittance, and can have more brilliant light effect. Multifunctional adjustable aluminum alloy bracket, can adjust the light emitting angle accurately, to have more uniform and wider illuminated area. Ip65. DMX512 control system to display the R/G/B colorful image, and color change synchronously. Applied to the scenery along the river, museum, exhibition hall, city leisure square, bridge and other structures to render the atmosphere, increasing the visual effect.



    Product parameters

    Item Code: GZD-TGD-570X190
    Light Source: High Power LED
    Input Voltage: AC85-265V/DC12-24V
    Power: 108-216W
    LED Color: R/G/B/Y/W/WW/RGB
    Beam Angle: 30-90°
    Light Output Ratio (LOR): 70lm/W
    Luminous Flux: 7560-15120 lm
    CCT: 2000K-6000K
    Control Mode:  SPI/DMX512/Steady
    Environment Temperature: -20°C-45°C
    IP Rate: IP65
    Dimension: l570XW190XH277.25mm

             570190 108W.jpg

     Light Distribution








     Fixture Size










          Installation










    Connection Instruction








    1. Each controller can max.Load 8 way signal, the quantity of light fixture for each string refer to the light fixture spec.

    2. Controller and controller are using net cable in series connection.

    3. Need to add the signal amplifier when the distance between the light fixtures over 30M.

    4. Besides the signal amplifier,there are other accessories for installation option,please see as below.



    Optional accessories



                  DMX Controller                        SIGNAL AMPLIFIER        "T" CONNECTION CABLE        SIGNAL CONNECTION CABLE






    Applications





    facades, bridges, sculpture, etc.
